KANE988

  • Tests any boiler up to & over 5MW / 50 mbar draught with high suction pump

  • Measures CO to 100,000ppm / 10%, HC to 5000ppm & CO2 to 20%

  • Option to measure NO, NO2, SO2 & H2S

  • Large graphic colour display & keypad

  • Wirelessly connects optional KANE LINK devices to measure flow & return, air flow & air quality

  • Tests air conditioning & refrigeration system superheat & subcool - wireless KANE LINK devices available soon

  • MCERTS (pending) tests with optional KANE GCU Gas Chiller Unit

  • Backed by KANE CARE 10 year warranty - We promise to never let you down or your money back

From €3 124,00 exc VAT

Application

  • Install, commission & service any heating & hot water system using any fossil, biomass & HVO fuel

  • Optional environmental sensors test to local regulations

  • Accurate NO2 & SO2 measurements with optional KANE-GCU gas conditioning unit

  • Safety checks - CO in rooms & around appliances

  • Combustion performance & efficiency tests

  • Flue draught & gas pressure / system tightness tests

  • Flow & return, air flow & air quality tests

  • Air conditioning & refrigeration superheat & subcool tests

  • Backed by KANE CARE - We promise to never let you down or your money back

Measures

  • O2 to 21% ppm to 0.01% resolution

  • CO to 10,000ppm H2compensated & 100,000ppm / 10%

  • CO2 to 21% with 40% over range

  • HC to 5,000ppm

  • Temperature - inlet / flue gas / differential / ambient / flow & return

  • High accuracy differential pressure meter +/- 160mbar

  • Velocity measurement to 30m/s with optional pitot tube

  • NO to 5,000ppm - option

  • NO2 to 1,000ppm - option

  • SO2 0-5,000ppm - option

  • H2S to 200ppm - option

Calculates

  • CO/CO2 ratio

  • Combustion efficiency,

  • Excess air / Lambda

  • NOx - if NO fitted

  • Superheat & Subcool - with optional KANE LINK devices available soon

Fuel Types

  • Natural Gas x2 & Town Gas

  • LPG, Biogas & Kinsale Gas

  • Butane, Propane & Gascor

  • Light oil & Heavy oil

  • Coke, Coal & Anthracite

  • Up to 5 user fuels

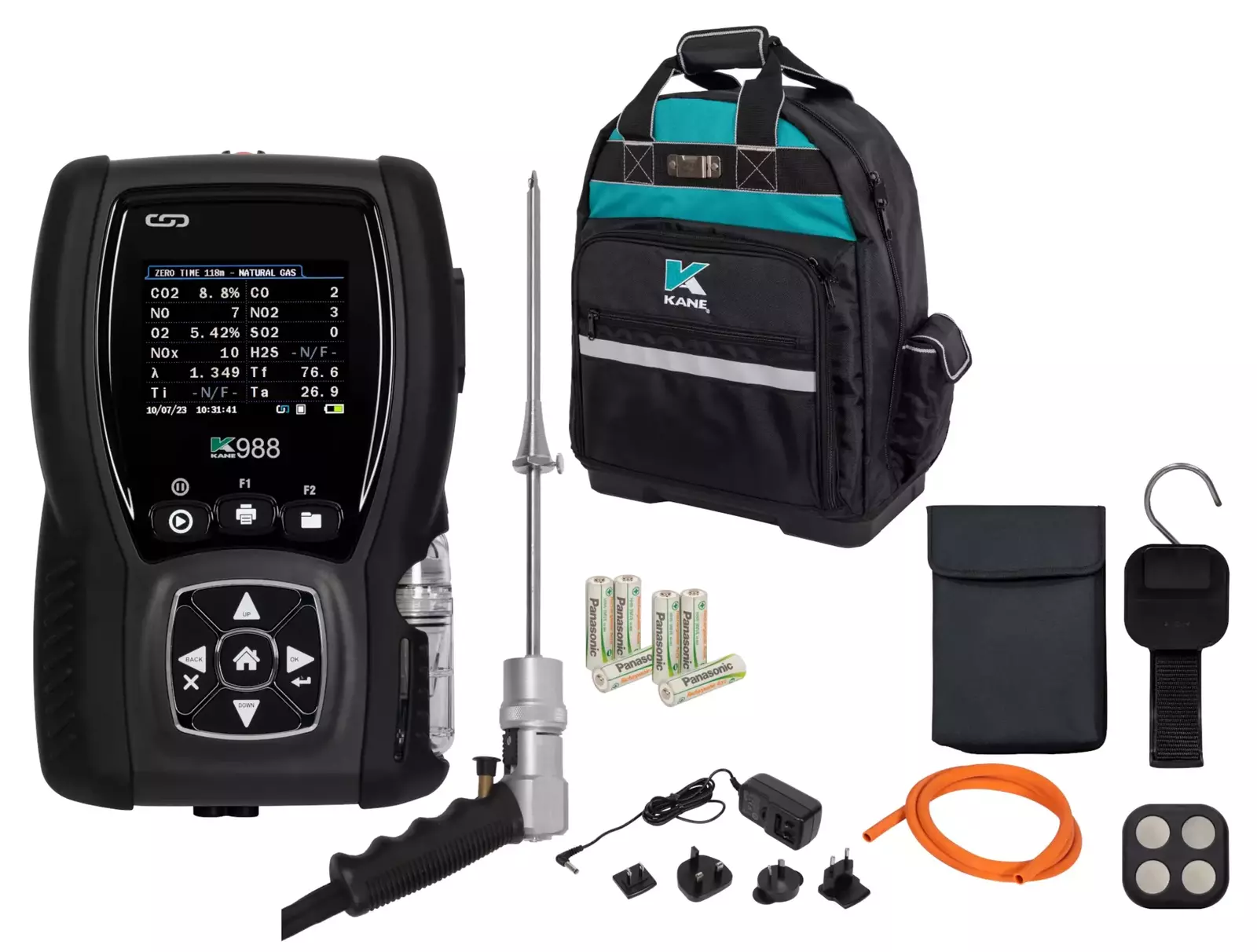

Box Contents

  • PTFE Lined Combustion Probe

  • Battery Charger

  • Rucksack / Backpack

  • Protective Handset Pouch
