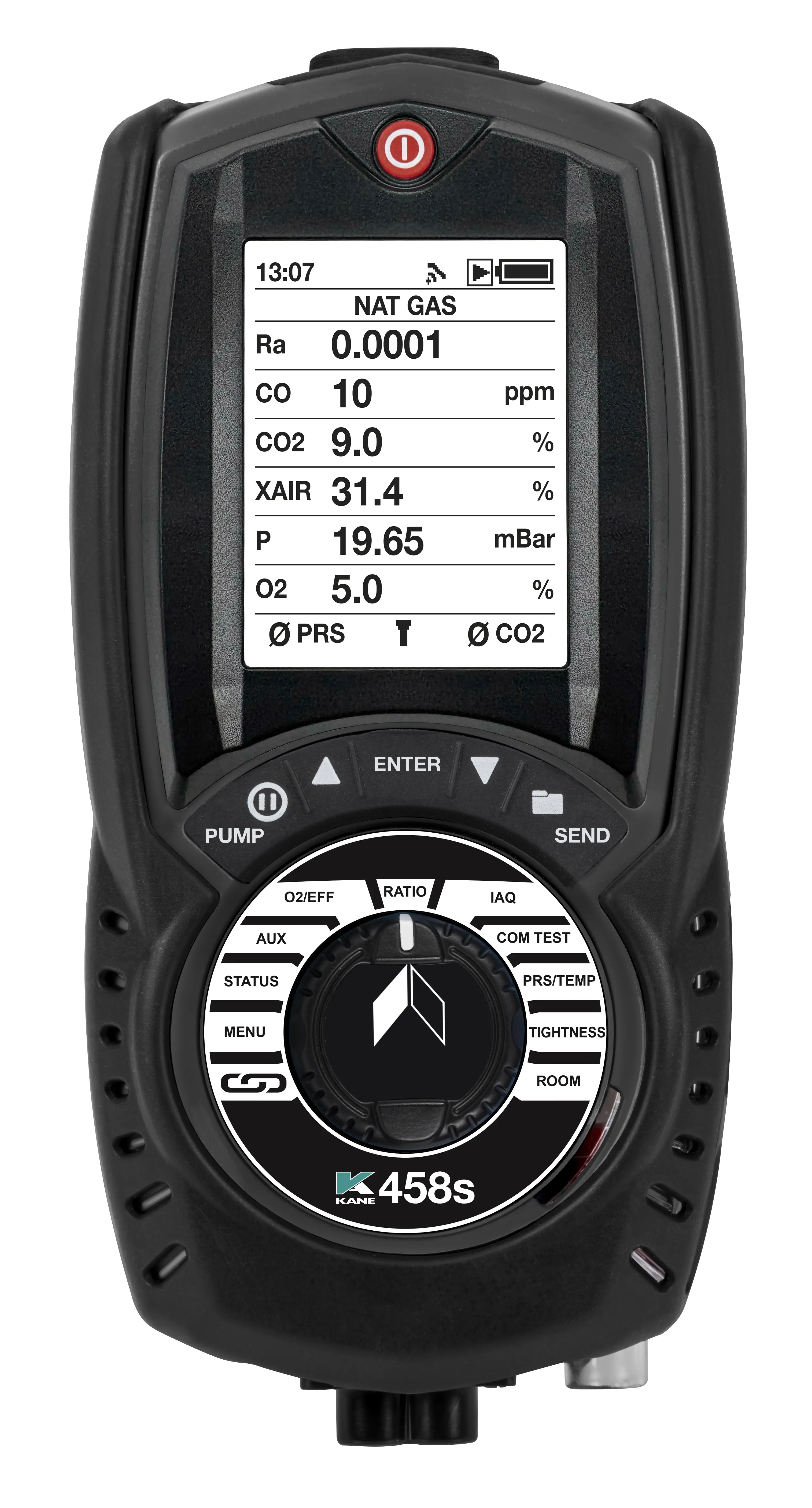

KANE458s

Flue Gas Analyser

KANE458s Flue Gas Analyser with direct CO, CO2 & CO sensor protection

  • Tests domestic gas, oil, biomass & some commercial appliances
  • Latest upgradeable sensor technology
  • Easy to use rotary dial
  • Purge pump protection prevents accidental damage to CO sensor
  • Wireless as standard
  • Hydrogen (H2 ) ready – up to 20% blend

Features

  • Structured commissioning test
  • Rotary dial & 6 line display
  • Data hold, log & print with user details to optional printer
    • Combustion - Pressure - Let-by & Tightness
    • Temperature - CO build up - Commission test
  • 10 year 'no quibble' warranty when recertified by KANE


Application

  • Install & service domestic oil & gas appliances
    • additional sensors to suit applications
  • Safety checks – CO in rooms or around appliances
  • Combustion performance checks
  • Combustion efficiency checks
  • Flue Draught

Measures

  • CO2 direct with an Infra-Red sensor 0-20%
  • CO 0-2,000ppm
  • Differential temperature
  • High accuracy differential pressure meter +/- 80mbar
  • O2 0-21% (option)
  • NO 0-600ppm (option)
  • High Range CO 0-10,000ppm (option)

Calculates

  • O2
  • CO/CO2 ratio
  • Excess air
  • Combustion efficiency
  • NOx (option)

Fuel Types

  • Natural Gas
  • LPG
  • Wood Pellets
  • Butane
  • Light oil
  • Propane

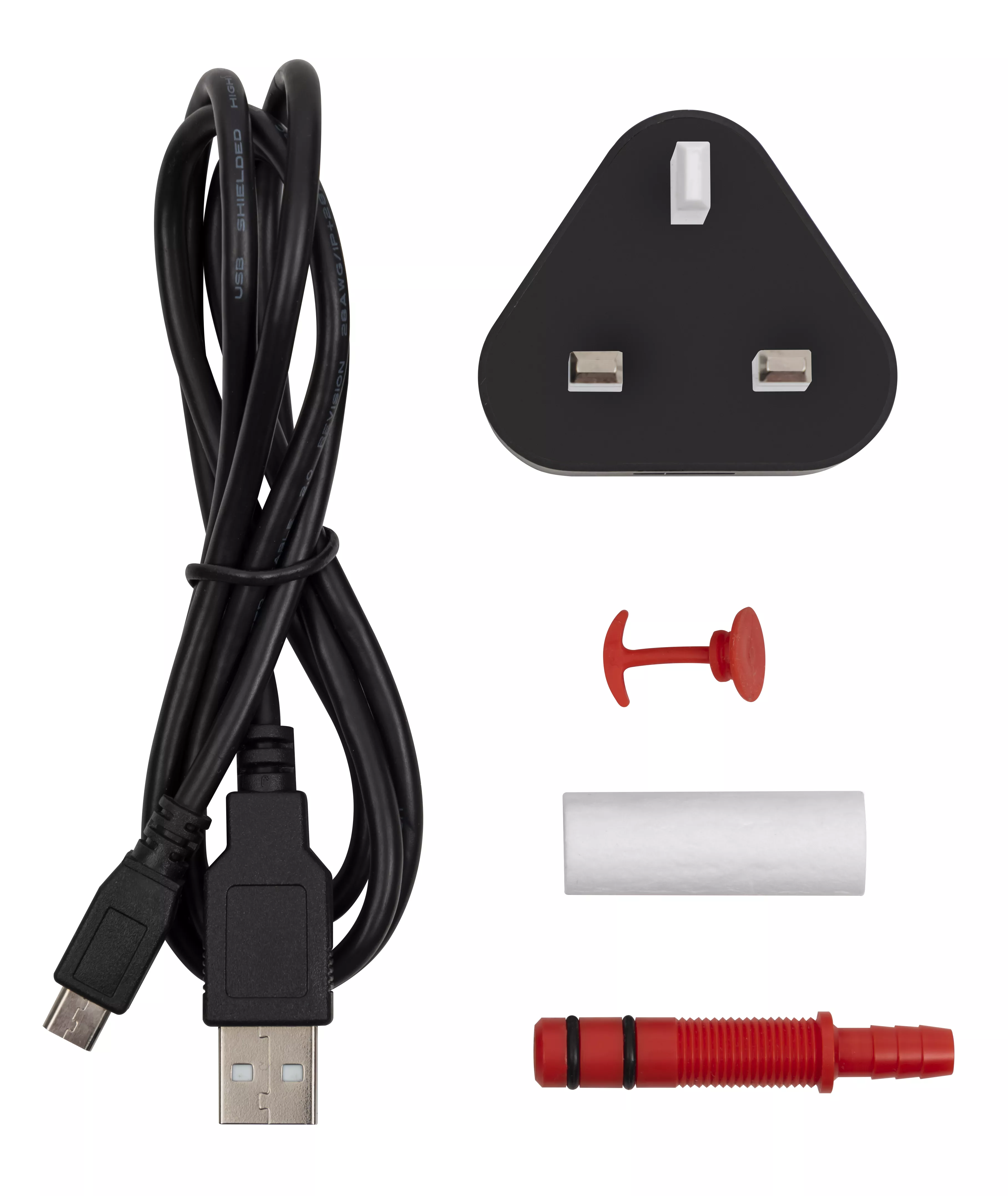

Box Contents

  • Analyser
  • Probe
  • Pressure connectors
  • USB charger
  • Quick reference guide & analyser calibration certificate

Videos

Kane Analysers Tutorial – Tightness test KANE458s

Kane Analysers Tutorial – Flue Integrity Test KANE458s

Kane Analysers Tutorial - Flue Gas Analysis KANE458s

Kane Analysers Tutorial – Differential Temperature Measurement KANE458s

Kane Analysers Tutorial – How To Charge KANE458s/KANE258 Flue Gas Analyser

Kane Analysers Tutorial – Connecting KANE458s To Mobile KANE Wireless Printer App

Kane Analysers Tutorial – Change Water Trap Filter KANE458s

Kane Analysers Tutorial – Retrieve Stored Combustion Report KANE458s

Kane Analysers Tutorial – Deleting Stored Combustion Reports KANE458s

Kane Analysers Tutorial – Connect KANE458s To KANE IRP-2 Printer

Service Price

YEAR 1 YEAR 2 YEAR 3 YEAR 4 YEAR 5
£110 £110 £110 £110 £175

Calibration or Conformity Certificates are included in all prices, as appropriate

All prices are in £ sterling and are exclusive of VAT.

Manuals

KANE458s Manual

KANE458s Manual

Please register your analyser or sign in to download the manual.

Register Analyser
